Camera
Image Sensor
5MP CMOS
Max. Resolution
2880 (H) × 1620 (V)
Pixel
5MP
Scanning System
Progressive
Electronic Shutter Speed
PAL:1/3 s–1/100,000 s
NTSC:1/4 s–1/100,000 s
S/N Ratio
> 65 dB
Min. Illumination
0.001 Lux/F1.0, 0 Lux warm light on
Illumination Distance
20 m (65.61 ft)
Illuminator On/Off Control
Auto; manual
Illuminator Number
1
Pan/Tilt/Rotation Range
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type
Fixed lens
Mount Type
M12
Focal Length
2.8 mm; 3.6 mm
Max. Aperture
F1.0
Field of View
2.8 mm: H: 112°; V: 57°; D: 132° 3.6 mm: H: 88; V: 46°; D: 104°
Iris Type
Fixed iris
Close Focus Distance
2.8 mm: 1.6 m (5.25 ft); 3.6 mm: 2.3 m (7.5 ft)
DORI Distance
Lens
Detect
Observe
Recognize
Identify
2.8 mm
67.4 m
(212.3 ft)
27.0 m
(88.6 ft)
13.5 m
(44.3 ft)
6.7 m
(22.0 ft)
3.6 mm
80.0 m
(262.5 ft)
32.0 m
(105.0 ft)
16.0 m
(52.5 ft)
8.0 m
(26.2 ft)
Video
Frame Rate
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLC
BLC/HLC/WDR/HLC-Pro
WDR
120 dB
White Balance
Auto; Area WB
Gain Control
Auto; manual
Noise Reduction
3D NR
Smart Light
Yes
Mirror
Off/On
Privacy Masking
Off/On (8 areas, rectangle)
Certifications
Certifications
CE (EN55032, EN55024, EN50130-4,EN60950-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input
One channel built-in mic (-A)
Power
Power Supply
12 V ±30% DC
Power Consumption
Max 4.4 W (12 V DC, warm light on)
Environment
Operating Temperature
–40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation)
Storage Temperature
–40 °C to +55 °C (–40 °F to +131 °F); < 95% (non-condensation)
Protection Grade
IP67
Structure
Casing
Metal inner core + plastic cover + plastic pedestal
Camera Dimensions
φ97.1 mm × 91.4 mm (φ3.82″ × 3.6″)
Net Weight
0.24 Kg (0.53 lb)
Gross Weight
0.37 Kg (0.82 lb)

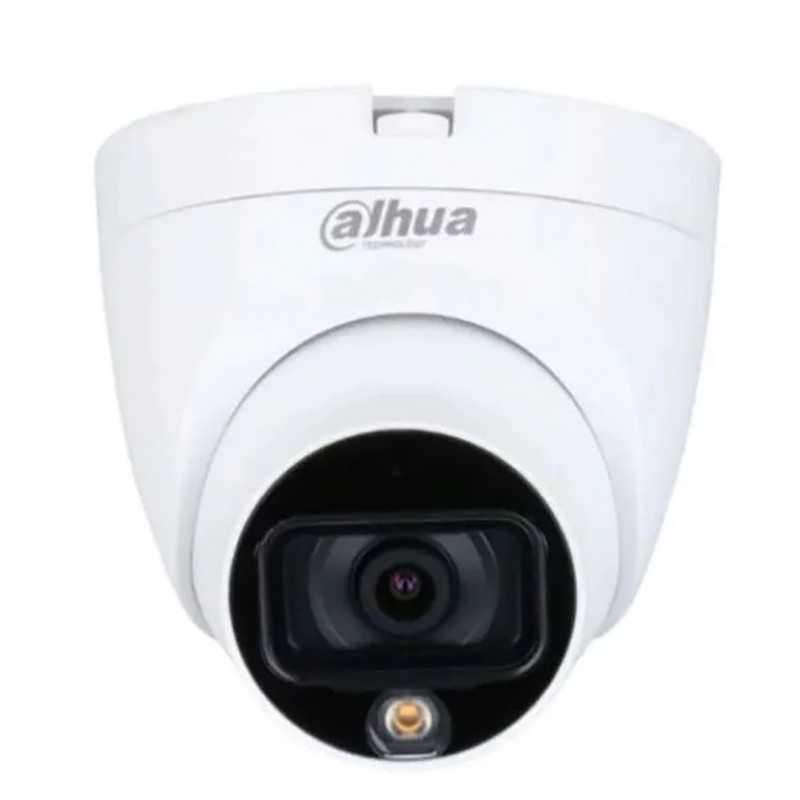

Référence
HDW1509TLQP-A-LED
