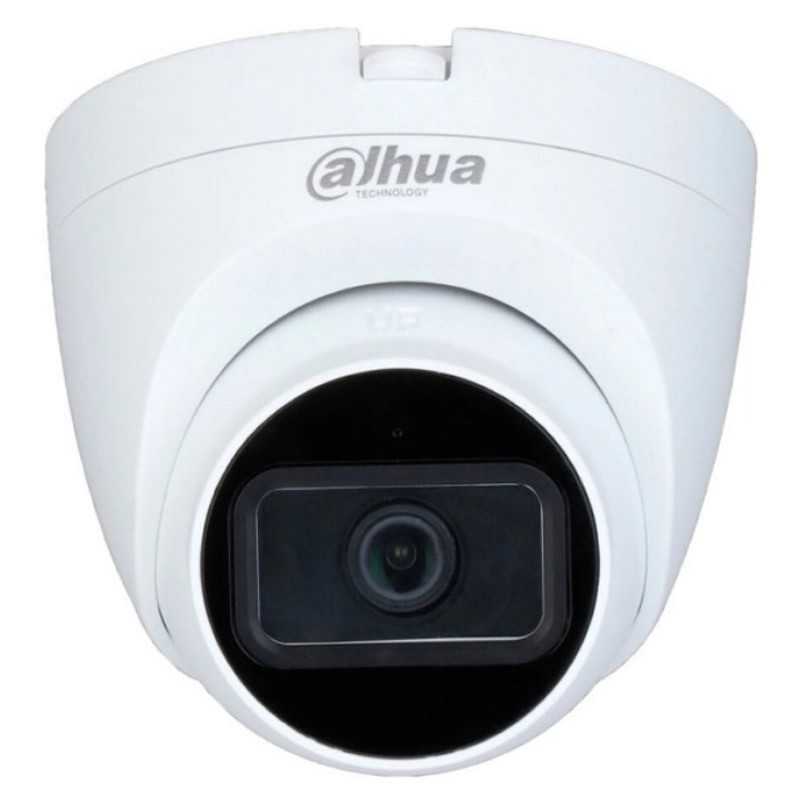

Camera
|
Image Sensor
|
1/2.7 inch CMOS
|
Max. Resolution
|
2880 (H) × 1620 (V)
|
Pixel
|
5MP
|
Scanning System
|
Progressive
|
Electronic Shutter Speed
|
PAL: 1/25s–1/100000s NTSC: 1/30s–1/100000s
|
S/N Ratio
|
>65 dB
|
Min. Illumination
|
0.005 Lux/F1.6 30IRE, 0 Lux IR on
|
Illumination Distance
|
25m(82.0 ft)
|
Illuminator On/Off Control
|
Auto; manual
|
Illuminator Number
|
2
|
Pan/Tilt/Rotation Range
|
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
|
Lens
|
Lens Type
|
Fixed-focal
|
Mount Type
|
M12
|
Focal Length
|
2.8 mm; 3.6 mm
|
Max. Aperture
|
F1.6
|
Field of View
|
2.8 mm: 132° × 111° × 58°
(diagonal × horizontal × vertical)
3.6 mm: 109° × 92° × 48°
(diagonal × horizontal × vertical)
|
Iris Type
|
Fixed iris
|
Close Focus Distance
|
2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.2 ft)
|
DORI Distance
|
Lens
|
Detect
|
Observe
|
Recognize
|
Identify
|
2.8 mm
|
63.6 m (208.7 ft)
|
25.4 m
(83.3 ft)
|
12.7 m
(41.7 ft)
|
6.4 m
(21.0ft)
|
3.6 mm
|
80 m
(262.5 ft)
|
32 m
(105.0 ft)
|
16 m
(52.5 ft)
|
8 m
(26.2 ft)
|
Video
|
Frame Rate
|
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
|
Resolution
|
5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 × 1080); 960 H (960 × 576/960 × 480)
|
Day/Night
|
Auto switch by ICR
|
BLC
|
BLC/HLC/DWDR
|
WDR
|
DWDR
|
White Balance
|
Auto; manual
|
Gain Control
|
Auto; manual
|
Noise Reduction
|
2D NR
|
Smart IR
|
Yes
|
Mirror
|
Off/On
|
Privacy Masking
|
Off/On (8 area, rectangle)
|
Certifications
|
Certifications
|
CE (EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015, EN 55035:2017, EN 50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
|
Port
|
Video Output
|
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
|
Audio Interface
|
No
|
Power
|
Power Supply
|
12V ±30% DC
|
Power Consumption
|
Max 3.0W (12V DC, IR on)
|
Environment
|
Operating Temperature
|
-40°C to +50°C (-40°F to 122°F);<95% (non-condensation)
|
Storage Temperature
|
-40°C to +50°C (-40°F to 122°F);< 95% (non-condensation)
|
Protection Grade
|
IP50
|
Structure
|
Casing
|
Plastic
|
Dimensions
|
Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66")
|
Net Weight
|
0.17 kg (0.37lb))
|
Gross Weight
|
0.23 kg (0.51lb)
|
